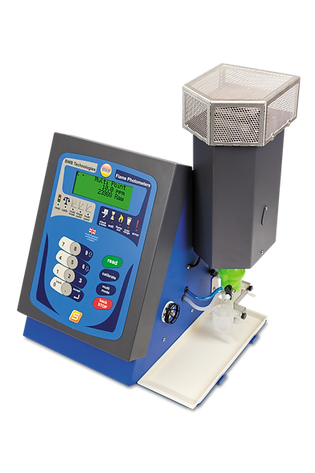

The BWB SUGAR Flame Photometer
In keeping with the Globally accepted published papers from 1977 forward, potassium and sodium detection is now available online 24/7 with a Uniquely configured channel of detection for extreme accuracy along the range of potassium control.
This winning proprietary format has been improved with a unique adaptation and optimisation of the proprietary BWB optical array detection systems, which in this iteration of the BWB Specialty Flame Photometers allows for a single channel of precise and accurate potassium and sodium measurement.
This Specialty Flame Photometer has been requested and designed for the global Sugar Production marketplace.
There were a few traditional Flame Photometer manufacturers over the decades who had served this market and now these robust and fantastic units are coming out of service.
Enter the BWB SUGAR Flame Photometer with specialised potassium and sodium channel detection, supplied with hybridised specific needs multiple point calibration solutions for potassium and sodium. Per our customers’ requests, our Collection Cup provides Real Time sample access for our mixing chamber/detection systems and only requires that the sample be at or near ambient temperature and customer provided ~5ml/minute feed to our unique “Collection Cup” system.
This totally unique BWB feature allows multiple installations details to be shared via intranet or internet links to provide “Distributed Control” via a single Control room with staff completely remote from the Refinery site itself. For large Sugar Companies with multiple sites around the world, this allows Expertise from a centralized location anywhere in the world with real time virtually limitless data accumulation and analysis.
.csv files allow users to construct novel and proprietary Excel spread sheets and to share data quickly and efficiently.
UNIQUELY HYBRIDIZED BWB dual CHANNEL, FOCUSED FOR HIGH ACCURACY POTASSIUM
and sodium MEASUREMENTS
“IRS” (INTERNAL REFERENCE STANDARD) AVAILABLE
4-20MA 2 WIRE OUTPUT COMPATIBLE WITH SCADA SOFTWARE
LIVE ONLINE MONITORING
CONSTANT CONDENSATION STREAM FEEDS WITH USE OF THE PROPRIETARY BWB COLLECTION CUP
BUILT-IN AIR COMPRESSOR; PIONEERED BY BWB TECHNOLOGIES IN 2007 AND PROVEN NOW WITH OVER 1000 UNITS IN GLOBAL FIELD USE
SOLUTIONS AND LABWARE INCLUDED; “JUST ADD GAS”, THE HALLMARK OF THE USER FRIENDLY BWB FLAME PHOTOMETER (FES) PROGRAM
USER SELECTABLE DECIMAL PLACES
INTUITIVE USER INTERFACE FOR TRUE EASE OF USE
DISPLAY PROMPTS STEP BY STEP OPERATION
DATA SHARING VIA PC LINK WITH BWB’S
Redefining Sugar refining from beet or cane
2 – 3.5ml/min
Silicone and Tygon®
Required desk space for Instrument
50cm (H) x 45cm (W) x 45cm (D)*
For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.
Sugar Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)
Sugar Flame Photometer – 14kg (30.8lbs)
Shipping – 25kg (55.1lbs)
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Multi Point Calibration
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
<1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation).
Na/K/Li = <1% to each other when
equal in concentration at <100ppm
Limit of detection (LOD) and
limit of quantification (LOQ)
Na – 0.03ppm Na – 0.1ppm
K – 0.02ppm K – 0.05ppm
Time to stability
Less than 15 seconds after sample is introduced into the flame
4-20mA output capable of direct link to SCADA systems
Optional integrated printer
.CSV and .PDF generated reports and files via FP-PC software
Collection Cup providing 24/7 live automated sampling*
Recommended minimum warm up
time based on ambient temperature
21ºC – 25 minutes
100V – 250V AC at 50 or 60Hz
Propane, Butane or Natural Gas*
regulated to 19Bar. Flow rate of O.4l/min
*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
LCD, four line, alpha numeric, back lit.
WHAT’S IN THE BOX
PC Leads USB and RS232
Power lead to suit your region
Manuals covering all aspects
of the Sugar FP
Quick Start guides
Warranty Registration Form
Certificates of analysis for all provided Fluids
Material Safety Data Sheets
for all provided Fluids
The FP-PC Software installation USB
150ml of BWB recommended
150ml calibration fluids for
Na, K & Li at 10,000ppm.
100ml conical flask with screw lid
100 disposable sample cups
1L of De-Ionised water
2x 2m of waste tube
Set of spare fuses
10 x 10ml pipettes
10 x 1ml pipettes
